COMMERCIAL ARCHITECTURAL SOLUTIONS
TENSILE MEMBRANE STRUCTURES FOR COMMERCIAL CONSTRUCTION
Expertly engineered tensile fabric roofs for commercial buildings. Durable, custom-designed PVDF membranes tailored for large-scale architectural projects worldwide.
GET A QUOTEWhat Is a Commercial Tensile Membrane Structure?

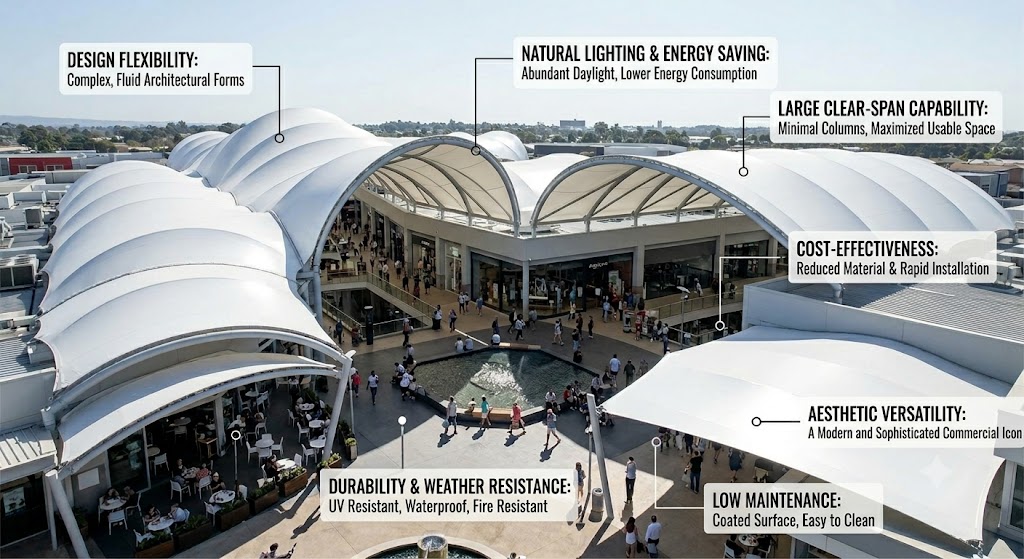

A commercial tensile membrane structure is a fabric-covered architectural system used for shopping centres, atriums, exhibition halls and mixed-use buildings, combining clear-span efficiency with energy-saving natural lighting.
With decades of membrane engineering expertise, Lonsun Tex designs and manufactures premium architectural fabrics for commercial real estate developments—from grand atrium skylights to sleek transit station canopies.
Commercial Construction Tensile Membrane Solutions
Lonsun Tex specializes in high-performance commercial construction membrane structures. We provide durable, innovative, and custom-engineered architectural fabric solutions for modern commercial, retail, and public infrastructure projects. From conceptual design to final installation, we deliver solutions that redefine urban spaces.
Key Advantages of Our Commercial Structures
Commercial tensile membrane structures represent the pinnacle of modern architectural engineering. Unlike traditional rigid roofing, our fabric solutions offer a unique combination of aesthetic freedom and structural efficiency.
Versatile Architectural Design
Our tensile membranes allow for sophisticated, modern forms—from elegant saddle shapes to complex wave structures—that significantly enhance the visual appeal of shopping centers, commercial complexes, and urban transport hubs.
Durable PVDF Membrane Technology
Engineered for extreme longevity, our industrial-grade fabrics utilize advanced PVDF surface coatings. These provide superior UV resistance, self-cleaning properties that reduce maintenance, and unmatched durability against harsh environmental elements like heavy snow or high winds.
Energy-Efficient Natural Lighting
Maximize interior brightness with high-translucency architectural fabrics. By diffusing natural light, our structures create a vibrant interior environment while drastically reducing the operational costs associated with daytime artificial lighting.
Flexible Clear-Span Engineering
Achieve expansive, column-free interior spaces. This flexibility is ideal for large commercial displays, dynamic public gatherings, and adaptive workspaces, providing an unobstructed experience for end-users.
Cost-Effective Construction Efficiency
Benefit from a streamlined project lifecycle. Our membranes require lighter foundation work and offer much faster installation times compared to concrete or steel, helping developers accelerate project completion schedules.
Tailored Structural Solutions
Lonsun Tex provides end-to-end support. We act as your project partner, handling everything from precise structural analysis and 3D canopy modeling to advanced manufacturing and on-site expert installation.
Target Commercial Architectural Applications
- Shopping Malls & Retail Plaza Atrium Skylights
- Exhibition Halls, Convention Centers & Event Canopies
- Urban Transport Hubs, Airport Terminal Canopies & Train Station Roofs
- Commercial Office Complex Walkway Canopies & Courtyard Roofs
Tensile Membrane vs. Traditional Steel Frame
| FACTOR | Lonsun Tensile Membrane | Traditional Steel Frame |
|---|---|---|
| Design flexibility | Free-form architectural shapes | Rectilinear limits |
| Clear span | Column-free spans | Requires internal columns |
| Energy efficiency | Natural daylight savings | Higher lighting load |
| Construction time | Faster, lighter build | Longer, heavier build |
| Maintenance | Low-maintenance PVC/PVDF | Regular steel upkeep |
| Best for | Malls, atriums, exhibition halls | Heavy-duty buildings |
TECHNICAL SPECIFICATIONS – COMMERCIAL TENSILE MEMBRANE
High-performance commercial construction tensile membrane solutions designed for architectural durability and aesthetic appeal. Our premium fabrics feature advanced TIO2+PVDF coatings, ensuring self-cleaning properties, superior UV resistance, and longevity for diverse commercial projects.
| Property | High-Translucency (1050gsm) | Standard Grade (1150gsm) | Heavy Duty (1250gsm) |
|---|---|---|---|
| Weight (GSM / OZ) | 1050g / 31.5oz | 1150g / 34.5oz | 1250g / 37.5oz |
| Base Fabric (Yarn) | 1300D (Low Wick) | 1300D (Low Wick) | 1500D (Low Wick) |
| Tensile Strength | 6500/6000 N/5cm | 6000/5500 N/5cm | 7500/7500 N/5cm |
| Tear Strength | 800/800 N | 900/900 N | 1000/1000 N |
| Surface Treatment | TIO2+PVDF | TIO2+PVDF | TIO2+PVDF |
| Flame Retardancy | B1/M2/NFPA 701 | B1/M2/NFPA 701 | B1/M2/NFPA 701 |
| Temperature Resistance | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C |
| UV Stability | 2000+ Hours | 2000+ Hours | 2000+ Hours |
Summary: Lonsun Tex provides high-performance commercial construction tensile membrane solutions. Our fabrics feature TIO2+PVDF surface treatment and are engineered for B1/M2/NFPA 701 flame retardancy, ensuring durability and safety for large-scale architectural tensile structures.
Frequently Asked Questions: Commercial Tensile Membrane Structures
Why choose tensile membrane structures for commercial construction?
Commercial tensile membrane structures offer a unique blend of architectural aesthetics and functional efficiency. They provide cost-effective, column-free clear-span spaces, excellent natural daylighting, and rapid installation, making them an ideal choice for modern commercial hubs, retail centers, and public infrastructure.
How durable are your architectural fabric solutions for commercial projects?
Our commercial-grade membranes are engineered for long-term outdoor performance. Featuring advanced TIO2+PVDF surface treatments, they provide superior UV stability, self-cleaning capabilities, and high resistance to pollutants, ensuring your commercial structure maintains its integrity and appearance for decades.
Are these tensile fabrics suitable for large-scale architectural designs?
Yes. Our industrial-strength tensile fabrics are designed for versatile, large-span architectural engineering. With high tensile and tear strength, they allow architects and engineers to create sophisticated, flexible canopy designs and complex roof geometries that meet the needs of large-scale commercial developments.
What international safety standards do your membrane solutions meet?
Safety is the cornerstone of our engineering. Our commercial tensile membranes comply with stringent international fire safety and building codes, including B1, M2, and NFPA 701, ensuring full regulatory compliance for public-access commercial buildings and urban projects.
