High Operational Efficiency
Rapid opening and closing speeds significantly reduce air exchange, improving logistics throughput. Our designs adhere to global ISO manufacturing standards for high-frequency industrial use.

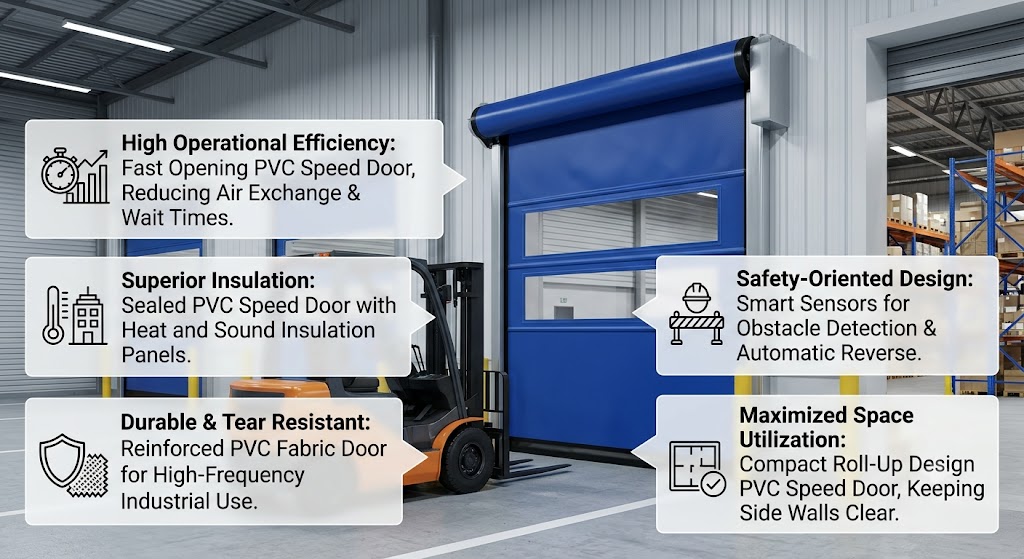

What Is a Speed Door?
A speed door (high-speed roll-up fabric door) is an automated industrial door that opens and closes rapidly to reduce energy loss, maintain temperature control and improve traffic flow in warehouses, cold storage and cleanrooms. Lonsun Tex 1050gsm PVC-coated fabric speed doors combine impact-resistant curtain fabric with self-repairing technology for demanding logistics environments.
Our 900gsm, 1050gsm, and 1500gsm foamed formulations were developed through 5 years of field testing with European cold chain logistics providers, resulting in the self-repairing curtain technology that defines our speed door fabric.
PVC COATED FABRIC SPEED DOORS
Industrial High-Speed Roll-up Doors engineered with PVC coated fabric for maximum logistics efficiency, thermal insulation, and long-term durability in high-traffic facilities.
Core Advantages of PVC Speed Doors
Superior Environmental Control
Provides effective dust-proofing, pest resistance, and sound insulation, maintaining climate-controlled environments for sensitive manufacturing areas.
Durability & Impact Resistance
High-strength PVC coated fabric withstands high-frequency cycles, rigorously tested against ASTM industrial weathering protocols to ensure exceptional wear resistance.
Advanced Safety Systems
Equipped with intelligent safety edge sensors and photoelectric protection to ensure automatic reversal, protecting personnel and cargo on-site.
Space-Saving Design
The compact roll-up mechanism stores the door curtain efficiently in the top housing, keeping side walls clear and maximizing floor space utility.
Low-Maintenance Economics
Designed for long-term reliability and minimal upkeep, compliant with European (EN) safety and quality benchmarks, offering superior cost-effectiveness for busy supply chain centers.
Target Industrial & Logistics Applications
- Cold Chain Logistics Warehouses & Deep-Freeze Storage Doors
- Pharmaceutical & Electronic Component Cleanroom Rapid Doors
- Automotive Manufacturing & High-Traffic Industrial Loading Docks
- Food Processing Plants, Pest-Controlled & Dust-Free Workshops
Aplicaciones Industriales y de Logística Objetivo
AVAILABLE COLORS
Industrial standard RAL colors. Custom options available for bulk orders.
WhiteRAL 9016
SilverRAL 7500
Agate GreyRAL 7038
Moss GreenRAL 6005
BlueRAL 5002
RedRAL 3002
YellowRAL 1003
OrangeRAL 2004
AnthraciteRAL 7016
BlackRAL 9005
PVC Speed Door vs. Steel Roll-up Door
| FACTOR | PVC Fabric Speed Door | Steel Roll-up Door |
|---|---|---|
| Opening speed | 1.0–2.5 m/s (fast cycles) | 0.1–0.3 m/s |
| Impact handling | Self-repairing curtain | Damage requires repair |
| Temperature control | Excellent for cold storage | Good, slower cycling |
| Weight & structure | Lightweight, minimal frame | Heavy, reinforced frame |
| Visibility & light | Optional transparent panels | Opaque |
| Best for | Warehouses, cold rooms, cleanrooms | Security & loading docks |
TECHNICAL SPECIFICATIONS – PVC SPEED DOORS
| Property | 900GSM | 1050GSM | 1500GSM (Foamed) | Test Standard |
|---|---|---|---|---|
| Base Fabric | 1000D | 1300D | 1000D | DIN ISO 2076 |
| Weave Structure | 12*12 Panama | 12*12 Panama | 9*9 Panama | Internal |
| Surface Treatment | Acrylic / PVDF | – | ||
| Tensile Strength (N/5cm) | 4000/4000 | 5000/5000 | 3200/3000 | DIN 53354 |
| Tear Strength (N) | 550/500 | 800/750 | 400/380 | DIN 53356 |
| Temp. Resistance | -40°C / +70°C | EN 1876/1 | ||
| Fire Rating | B1 / M2 | B1 / M2 | B1 | EN 13501-1 |
| UV Resistance | Excellent | ISO 4892-2 | ||
| Features | Anti-Static / Glossy | Anti-Static / Glossy | Thermal Insulation | – |
Summary: Lonsun Tex PVC Speed Door Fabrics are engineered for high-frequency industrial environments. Featuring specialized 900gsm, 1050gsm, and 1500gsm (foamed) variants, these high-tenacity membranes offer superior tear resistance, extreme temperature tolerance (-40°C to +70°C), and advanced fire safety ratings, making them ideal for high-speed door systems requiring both durability and thermal efficiency.
Frequently Asked Questions
What makes Lonsun Tex PVC speed doors suitable for cold storage environments?
Our high-speed doors are engineered with specialized foamed PVC fabric that maintains flexibility and structural integrity in temperatures as low as -40°C. They provide excellent thermal insulation to minimize energy loss in cold chain logistics.
Do your high-speed roll-up doors feature self-repairing technology?
Yes, we offer advanced self-repairing curtain systems. If the door curtain is accidentally dislodged by a forklift or impact, it can automatically re-insert itself into the side guides during the next opening cycle, significantly reducing maintenance downtime.
Are these industrial speed doors compliant with international safety standards?
Absolutely. Lonsun Tex speed doors are designed to meet stringent safety requirements, including CE certification. They come standard with integrated photoelectric sensors and safety edge systems to ensure instantaneous reversal upon detecting any obstacle, protecting both personnel and equipment.
Can these PVC speed doors be customized for specific warehouse requirements?
Yes, we offer full customization, including various fabric weights (900GSM to 1500GSM), RAL color matching, and transparent window configurations to suit your facility’s specific operational needs and branding.
What is the typical lifespan and maintenance frequency of your speed doors?
Designed for high-traffic industrial logistics, our doors are built for millions of cycles. With high-strength 1000D/1300D base fabrics and high-performance motors, they require minimal routine maintenance, ensuring a low total cost of ownership for busy distribution centers.
